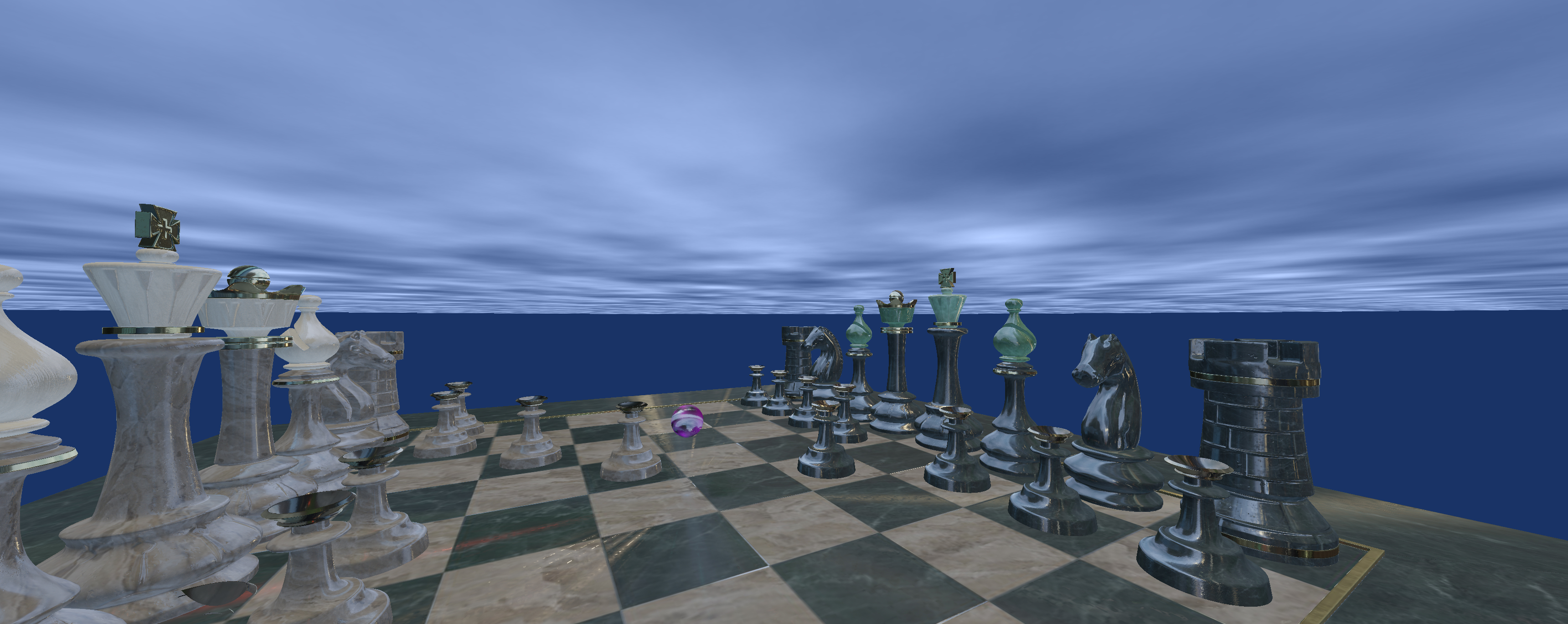

VuklanTest was a render project intended to teach myself not just how Vulkan works in comparison to DirectX, but also how a game engine is actually structured. The project was started by following some resources on Vulkan, after that point I’ve been spending time adding onto the base engine and bringing technical features I already knew about like shadow casting to bring the engine up to my own standards.
At it’s most basic, a render engine is something that can convert a representation of three dimensional space and convert it into something understandable by the human eye. Therefore, it makes a ton of sense to start with getting meshes rendered into the scene, ultimately there is some prior work done to configure Vulkan, and setting up buffers for all images used in the swapchain. However, a lot of the bones needed to setup Vulkan aren’t the most interesting to code or talk about, so just know I am skipping over quite a bit to make this more digestible.

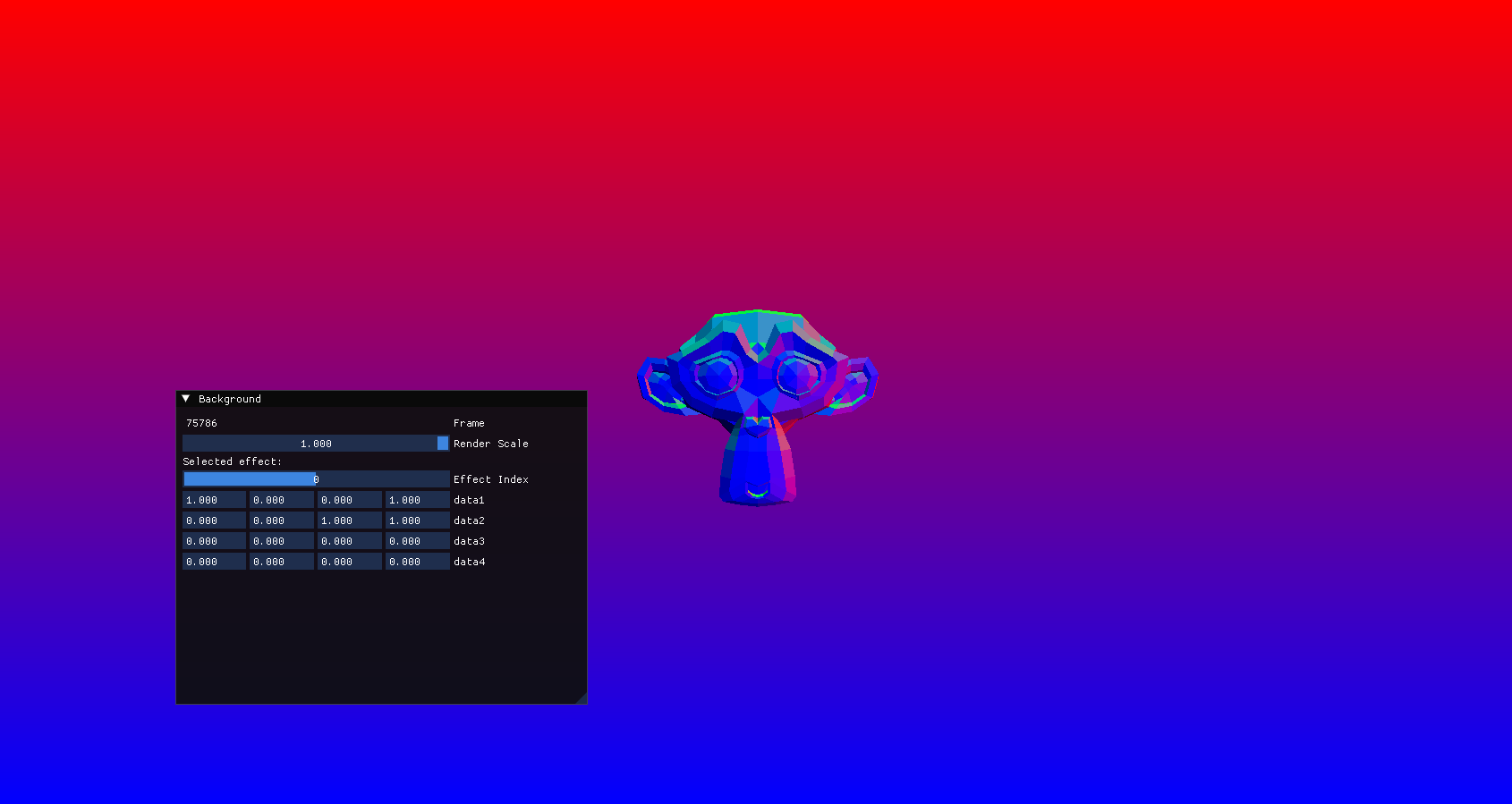

So, first of, this is the Suzanne model from blender, this was pretty early on in me learning Vulkan, so I was mostly following a written guide which provided some basic assets. When it comes to loading Vertex information in Vulkan there are a few options you can take to achieve roughly the same effect. Typically, you can use VKBuffer and bind it in a command buffer using vCmdBindVertexBuffers and submit it, this would automatically push the Vertices into a structure that can be easily accessed via GLSL. However, thats not the modern way to handle Vertex buffers, usually you would use Storage Buffers as they are a lot more flexible, allowing you to push whatever information to the GPU that you want, which is really useful for Vertex packing, and other techniques that can reduce GPU bandwidth.

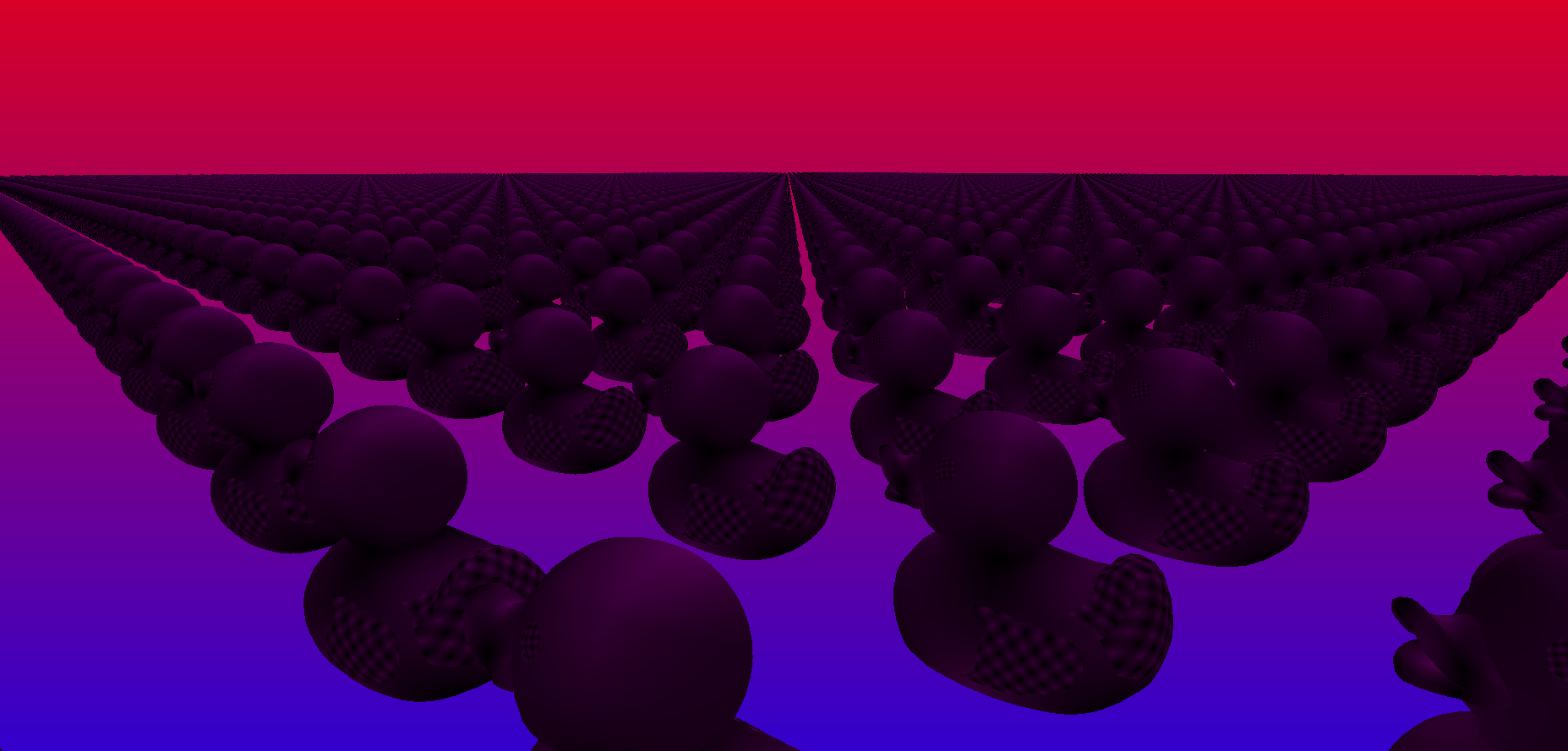

Here’s some ducks being rendered with an invalid texture
At this point, I have a way of rendering a mesh from a GLTF, but I haven’t actually perserved any of the structure of a GLTF and if I wanted to render out a scene, I would need to manually code it. Not only would that be a waste of time, but it would quickly become unmaintable. Luckily, GLTFs define a node structure, and we can read in that data and construct our own Render Tree using something like FastGLTF. Since I can define each class node to render itself and it’s children, it’s rather easy to render the entire tree once using the root node.

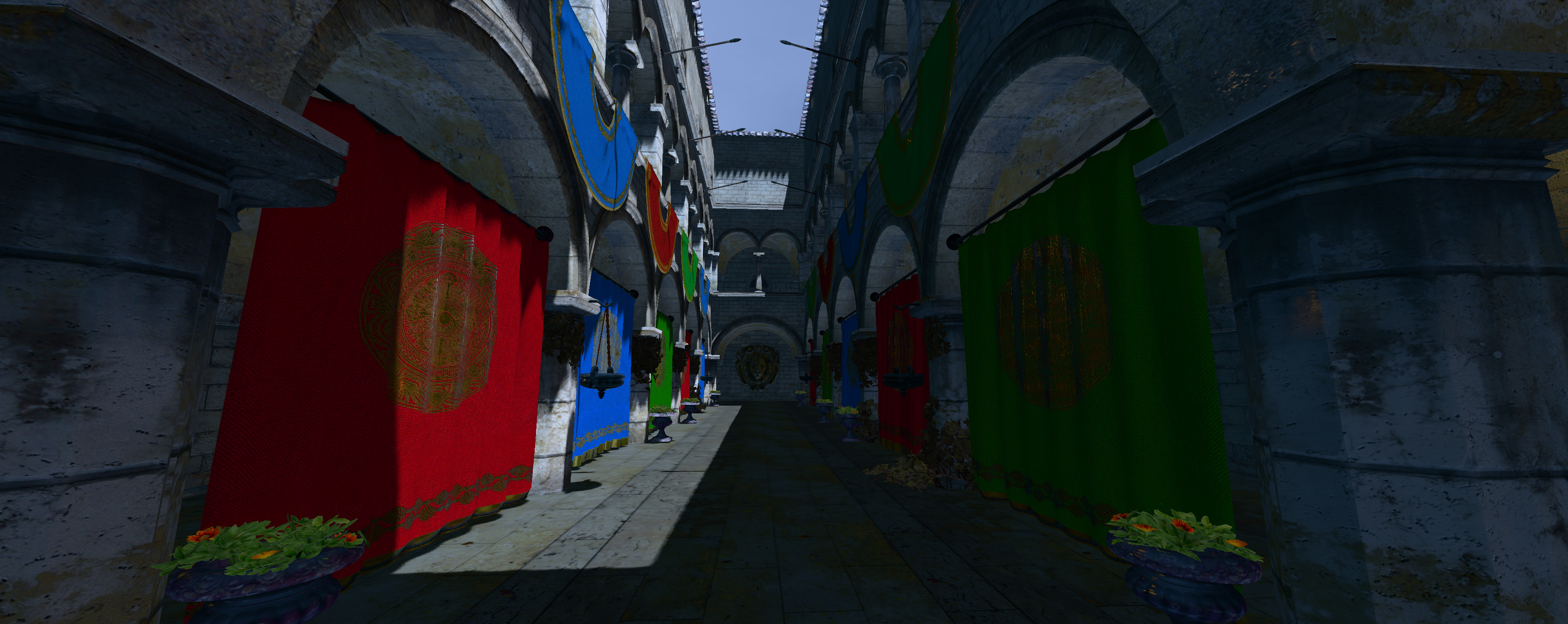

Now we can render scenes and all, but it’s become fairly obvious that our final output isn’t paticularly interesting. Our renderer is quite comparable to early 3D renderers and doesn’t draw materials correctly, not making any use of PBR or more advanced lighting techniques. However, there’s a few things we can implement to bring the renderer up to speed and make it far more impressive and far more adaptable.

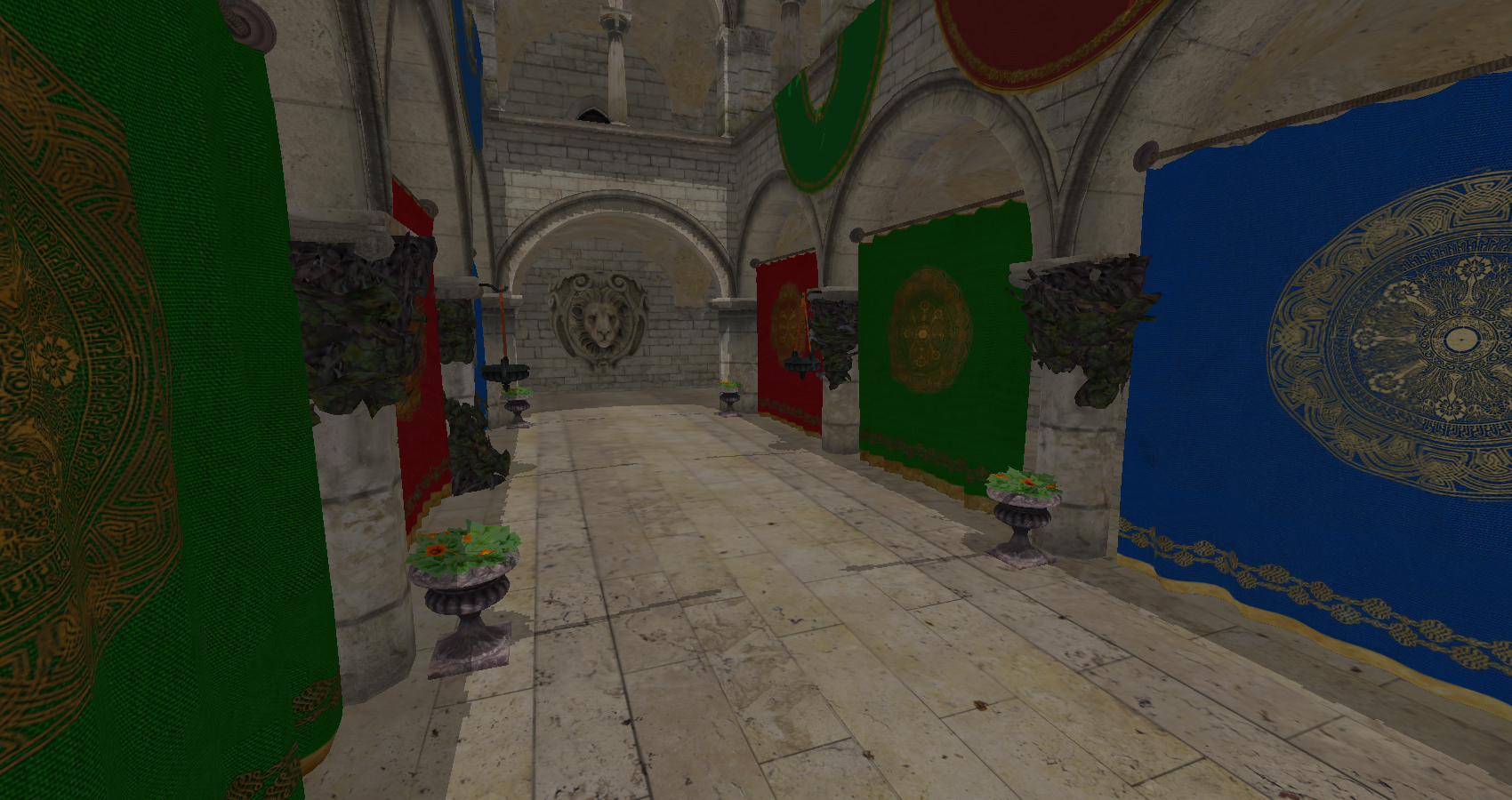

At the moment our objects don’t really look like they exist in scene, it almost looks like they have been edited into the image with something like photoshop. The most glaring omition is the lack of shadows being cast by objects in the scene. After all, a shadow will always be cast when something obscures any part of a light source.
All you need to implement such a feature, we need to be able to determine whether a pixel is in shadow. Now in the real world, an area is not in shade if photons can reach it’s surface, you can simulate that by tracing rays from the object to the light. However, that’s typically pretty slow ( RTX helps, but I’m not going into it right now ), so instead we can use a trick to simulate shadows, without the more complex processing.
If we render the scene from the Sun’s prespective, we can actually create a depth texture, which represents the depth each pixel is from the nearplane of the Sun. Alongside the matrix used to create the camera, we can actually project any point in 3D space into the same clip space of our shadow texture. Once translated we would get a coordinate which contains the X and Y position we are on the texture, as well as a Z which defines how far we are from the Sun. From that point, we can compare our vertice’s Z with the Z stored on the depth texture and figure out if we are at or below the closest object obscuring the Sun and thus, whether or not to render this Vertex in shadow.
